Product Description

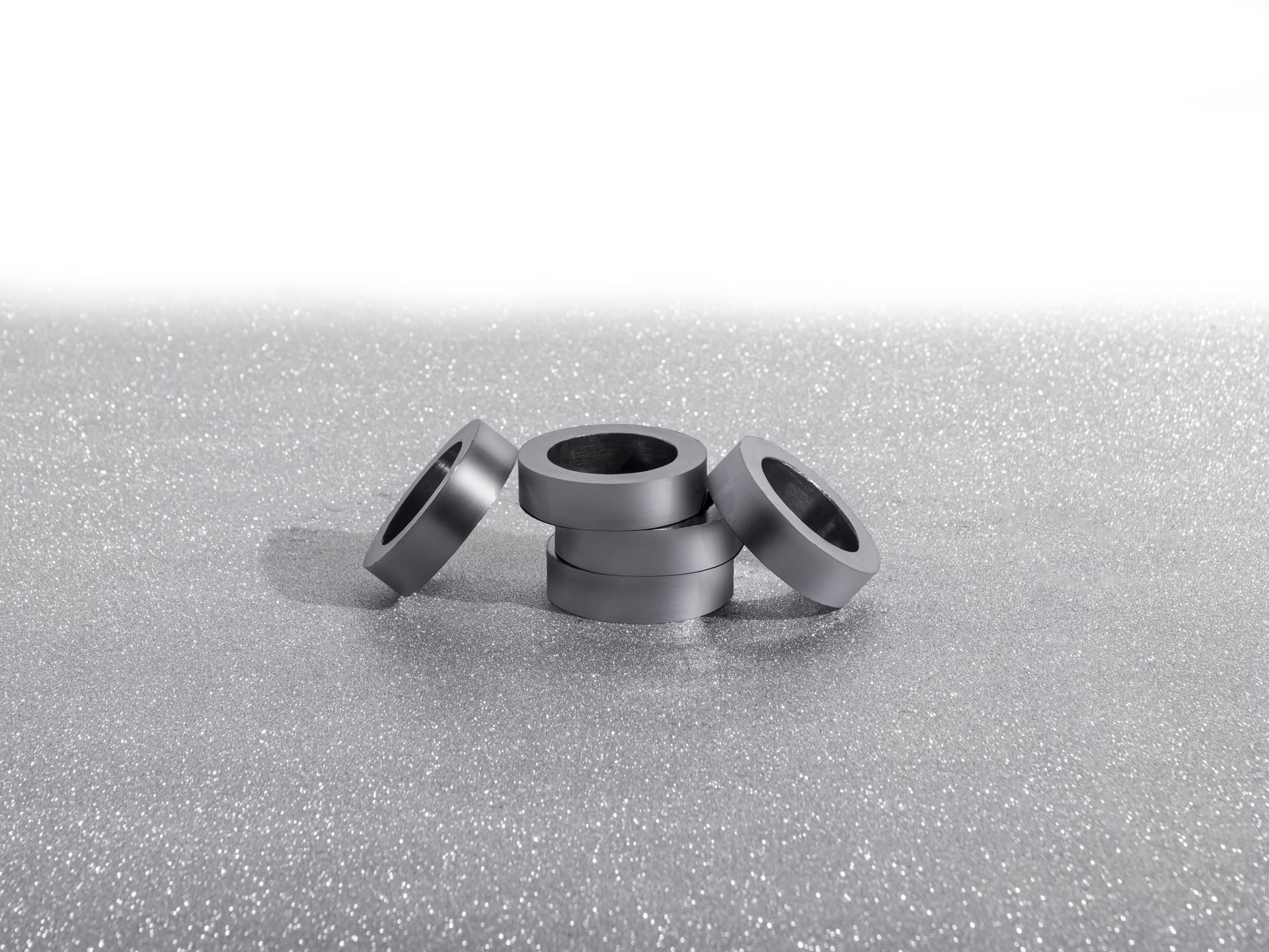

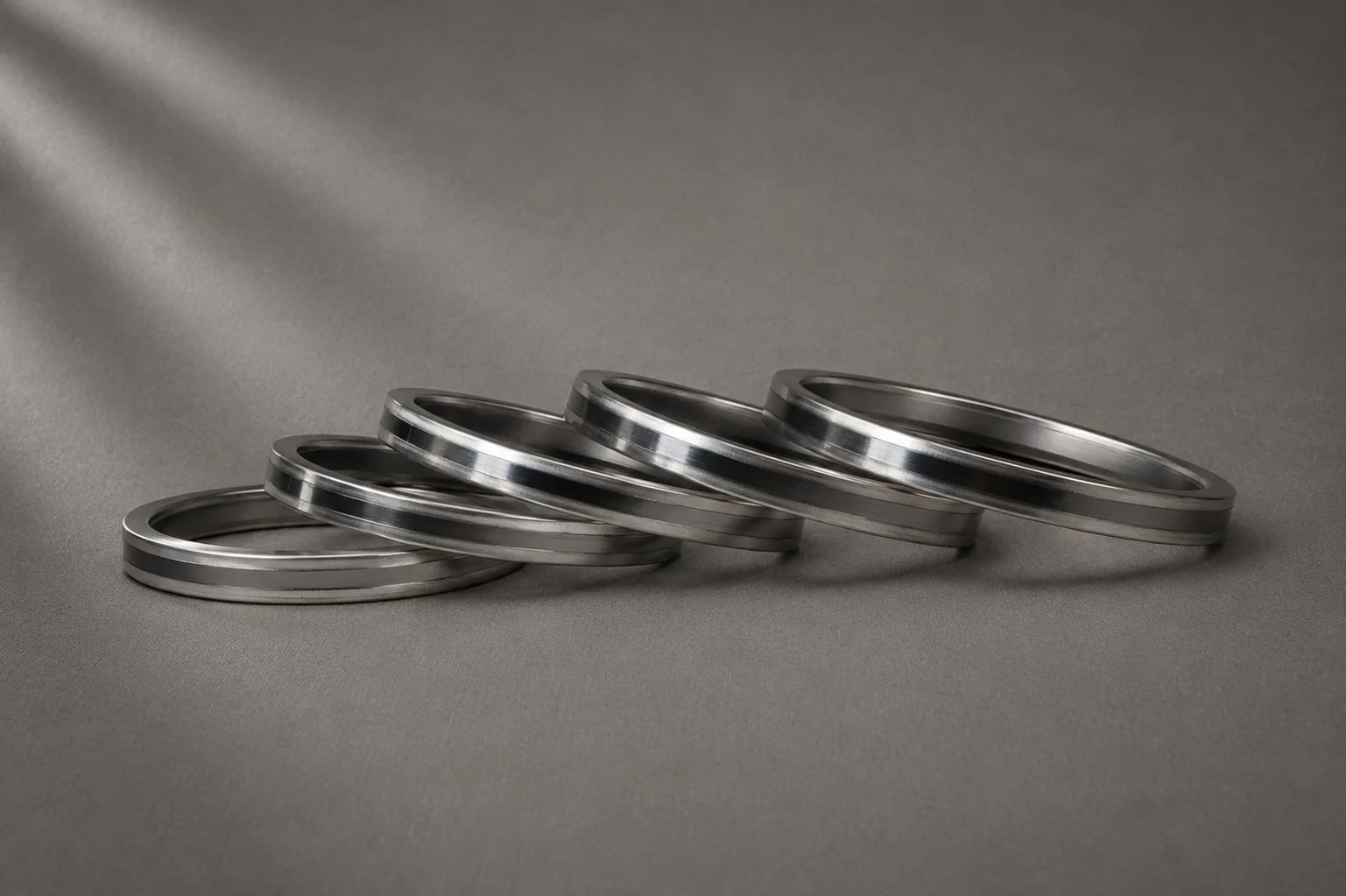

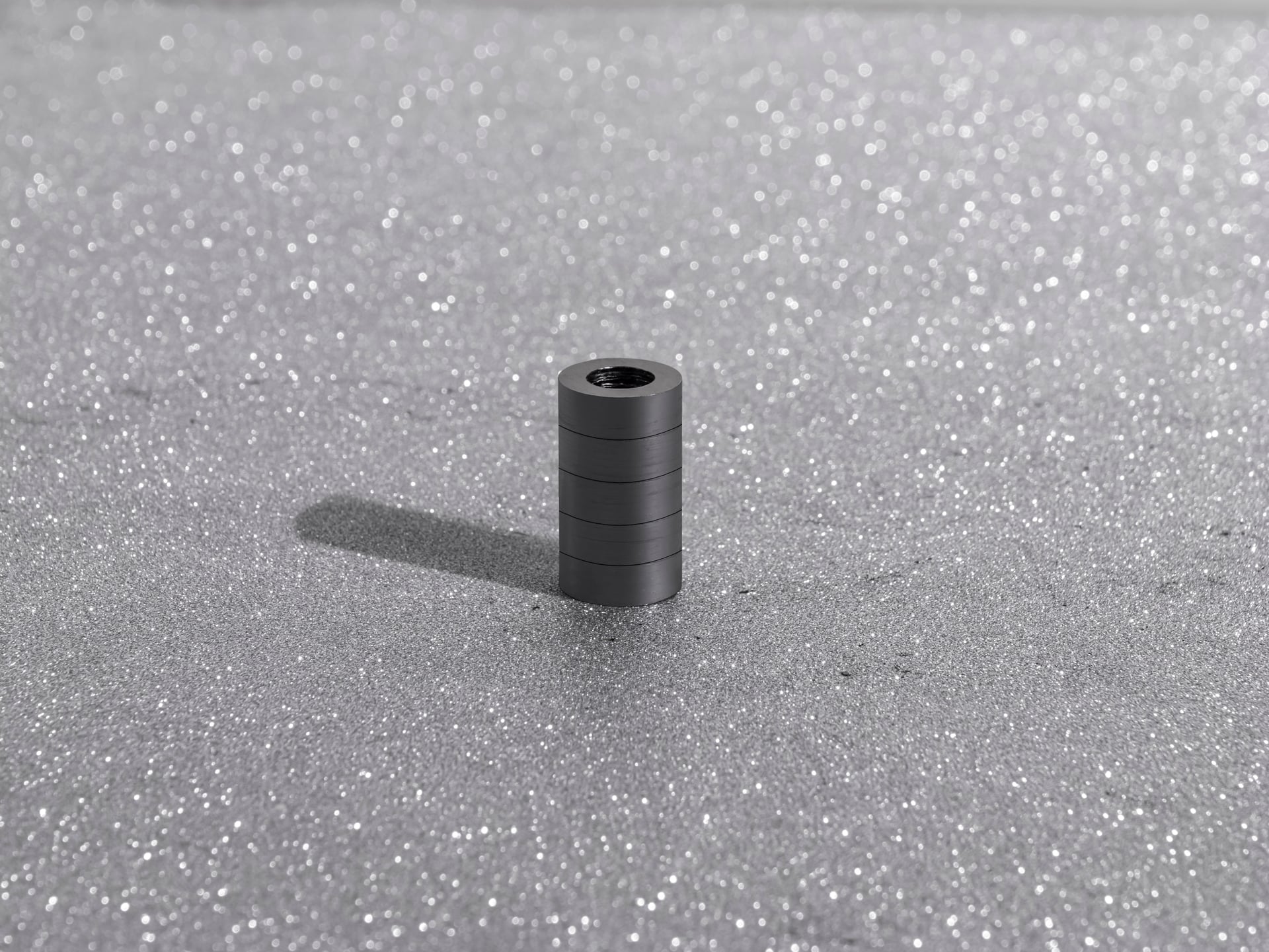

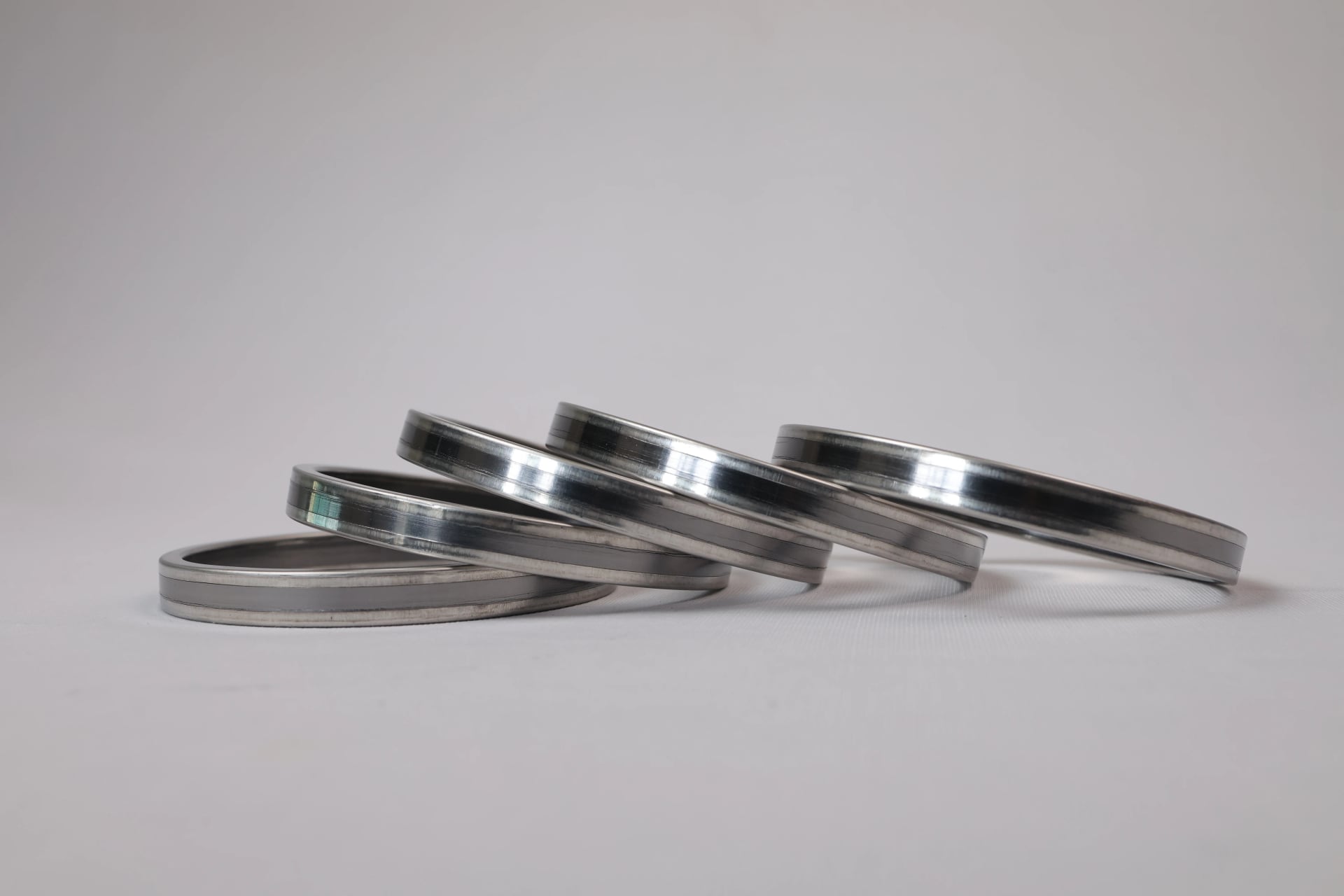

GM 360 Stack gasket are die formed rings manufactured from alternating Graphite foils & Stainless-Steel foils in circular cross section. The horizontal reinforcement of SS foil increases pressure resistance as well as mechanical strength. These gaskets have high Thermal and Dimensional stability, extremely low gas/liquid permeability, and are chemically inert.
Quick Specifications
pH Range
0 ~ 14 (Universal)
Temperature (Oxidizing)
650°C
Temperature (Reducing)
2700°C
Pressure Rating
50 bar
Technical Data
Specifications
pH Range0 ~ 14 (Universal)
Temperature (Oxidizing)650°C
Temperature (Reducing)2700°C
Pressure Rating50 bar
MaterialGraphite Foil + Stainless Steel Foil
Additional Technical Data
ThicknessAvailable in various thicknesses
Size RangeDN15 to DN600
CertificationShell MESC SPE 85/203
Benefits
Key Features
High Thermal Stability - Withstands extreme temperature ranges
Dimensional Stability - Maintains shape under pressure and temperature
Low Permeability - Extremely low gas/liquid permeability
Chemical Resistance - Resistant to acids, alkalis, and solvents
Pressure Surge Resistant - Handles sudden pressure changes
Thermal Shock Resistant - Withstands rapid temperature fluctuations
Chemically Inert - Non-reactive with most media
SS Reinforcement - Horizontal stainless steel foil for enhanced strength
Contamination Free - Pure materials ensure clean sealing
Use Cases
Applications
All types of Valves
Flanged connections
High-temperature equipment
Chemical processing equipment
Power generation systems
Oil & Gas applications
Steam systems
Hydrocarbon processing
Additional Support?
Contact our sales team for pricing, availability, and technical specifications.
